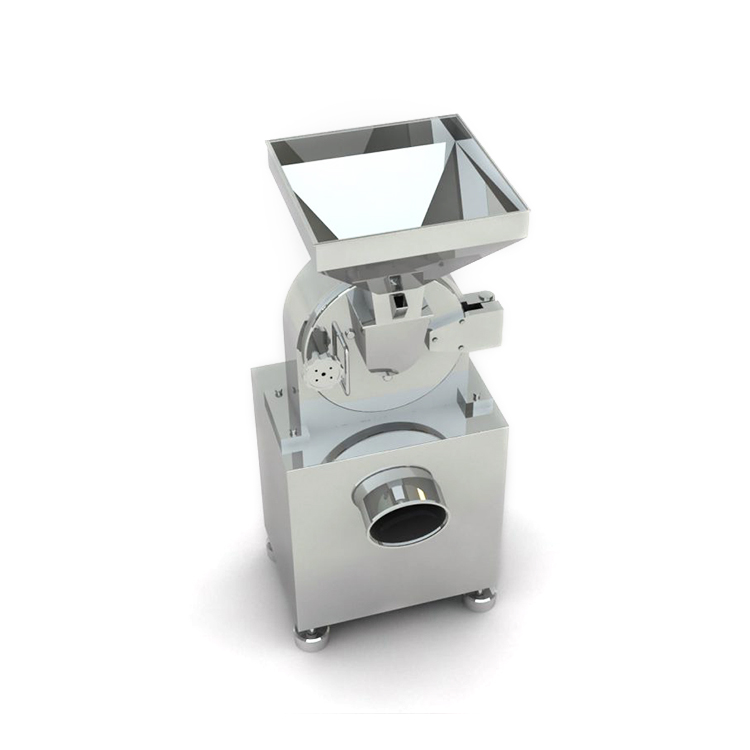

Home » Products » Fine crusher » B Series Universal Crusher
This machine is applied for material crushing in such trades as pharmaceutical, chemical and foodstuff etc.
Main Application:
This machine is applied for material crushing in such trades as pharmaceutical, chemical and foodstuff etc.
Working principle:
By means of relative motion between movable and fixed fluted discs, material is crushed by impact and friction of the teeth and impact among the materials. Designed according to GMP
standard and wholly made of stainless steel, with simple structure, high output and easy cleaning, this machine is the most ideal crushing equipment at present.
| Model | Production Capacity | Feeding Size | Crushing Fineness | Spindle Speed | Motor Power | overall dimension | weight |
|---|---|---|---|---|---|---|---|
| 15BIV.V.VI | 10-50kg/h | 6mm | 20-120mesh | 6000r/min | 2.2kw |
550*400*850 mm |
100kg |
| 20BIV.V.VI | 60-150kg/h | 6mm | 20-120mesh | 4500r/min | 4kw |
550*600*1250 mm |
280kg |
| 30BIV.V.VI | 100-400kg/h | 6mm | 20-120mesh | 3800r/min | 5.5kw |
600*700*1450 mm |
350kg |
| 40BIV.V.VI | 160-1000kg/h | 10mm | 20-120mesh | 3400r/min | 11kw |
800*900*1550 mm |
550kg |
| 60BIV.V.VI | 500-2000kg/h | 12mm | 20-120mesh | 2800r/min | 18.5kw |
900*900*1880 mm |
680kg |
| 80BIV.V.VI | 1000-5000kg/h | 12mm | 20-120mesh | 2000r/min | 37kw |
1100*950*1960 mm |
1500kg |
| 100BIV.V.VI | 2000-8000kg/h | 12mm | 20-120mesh | 1500r/min | 55kw |
1350*1000*2100 mm |
2500kg |
