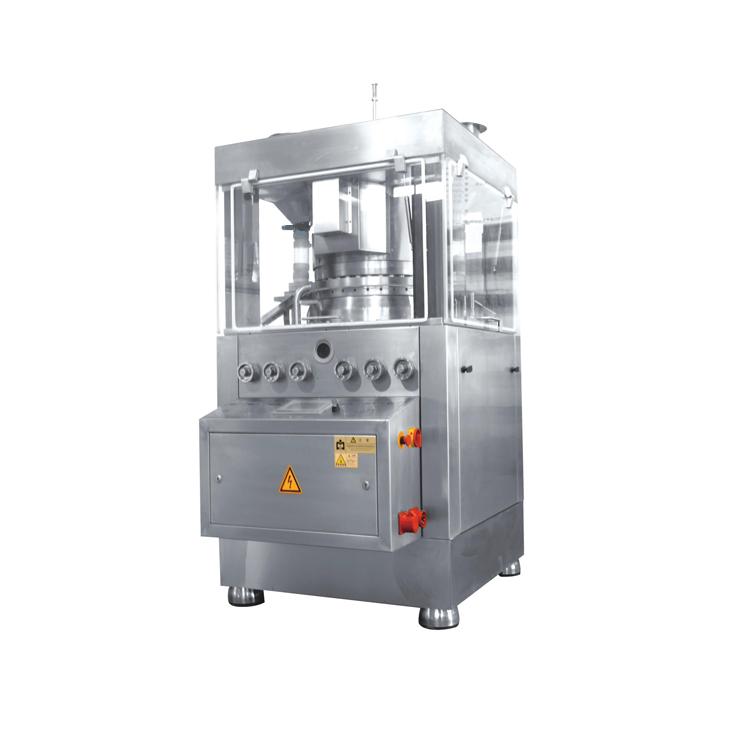

Home » Products » Tablet Press Machine » GZP-520i Double Discharging Rotary Table Press
Equipment performance
Contro lled by PLC Programme
Equip with self-lubrication system
Tablets formed from powder by prepressing and main-pressing procedure
Double-forced feeding system
Tableting room is compliant with GMP standard
Technical parameters
|
參數 |
Data |
ZP55 |
ZP49 |
ZP41 |
ZP35 |
ZP47 |
ZP39 |
|
沖模數 |
Die number |
55 |
49 |
41 |
35 |
47 |
39 |
|
最大主壓片力 |
Maximum main tablet force(kn) |
100 |
|||||
|
最大預壓片力 |
Main pressure(kn) |
20 |
|||||
|
最大壓片直徑 |
Max tablet diameter(mm) |
13 |
18 |
||||
|
最大壓片厚度 |
Max Thickness of tablet(mm) |
8 |
6 |
||||
|
最大填充深度 |
Max Depth of filling (mm) |
18 |
15 |
||||
|
轉臺轉速 |
Rotate speed(r/m) |
5-40 |
|||||
|
生產能力 |
Out-put (p/h) |
264000 |
235000 |
196000 |
168000 |
225000 |
187200 |
|
沖模直徑 |
Tooling type |
BBS |
BB |
B |
D |
ZP22 |
ZP26 |
|
主電機功率 |
Main motor power |
7.5Kw |
|||||
|
外形尺寸 |
size |
1350 x 1040 x 2200 |
|||||
|
機器重量 |
Weight |
3900 |
|||||
