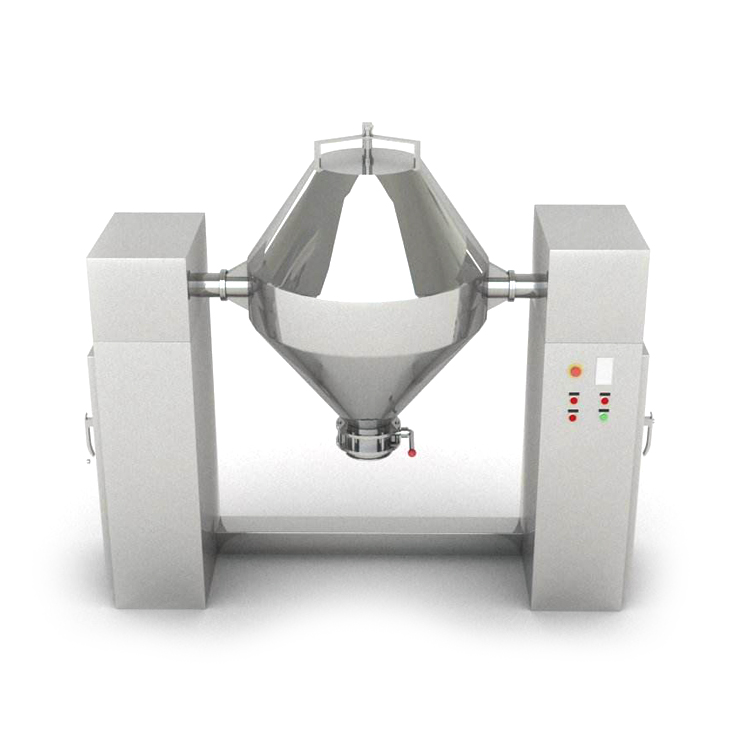

With similar functions to those of V type mixer, this machine is applicable for pharmaceutical, chemical, foodstuff, feed, pigment and electronic trades etc., lt has remarkable effect in mixing powders and particles with relatively good fluidity. With the each Index reaching the standard of same kind of foreign product, its barrel is made of stainless steel, which is polished both inside and outside, featuring beautiful appearance and easy operation.
Main Application:
With similar functions to those of V type mixer, this machine is applicable for pharmaceutical, chemical, foodstuff, feed, pigment and electronic trades etc., lt has remarkable effect in mixing powders and particles with relatively good fluidity. With the each Index reaching the standard of same kind of foreign product, its barrel is made of stainless steel, which is polished both inside and outside, featuring beautiful appearance and easy operation.
Model
Barrel volume
Max loading volume
Max loading weigh
Mixing time
Motor power
Barrel speed
Overall dimension
Weight
W-30
30L
15L
15kg
0-99min
0.37kw
15r/min
750*390*810mm
100kg
W-100
100L
50L
50kg
0-99min
1.1kw
15r/min
1300*600*1400mm
310kg
W-300
300L
150L
150kg
0-99min
1.1kw
15r/min
1580*650*1720mm
310kg
W-500
500L
250L
250kg
0-99min
3kw
15r/min
2010*800*2000mm
550kg
W-1000
1000L
500L
500kg
0-99min
4kw
12r/min
2300*1050*2570mm
800kg
W-1500
1500L
750L
750kg
0-99min
5.5kw
12r/min
2900*1300*2660mm
950kg
W-2500
2500L
1250L
1250kg
0-99min
11kw
12r/min
3000*1300*3180mm
1650kg
W-4000
4000L
2000L
2000kg
0-99min
15kw
10r/min
3200*1300*3600mm
1880kg
W-6000
6000L
3000L
3000kg
0-99min
18.5kw
10r/min
3500*1300*3800mm
2350kg
W-8000
8000L
4000L
4000kg
0-99min
22kw
10r/min
3980*1300*4300mm
2680kg
