Home » Products » Liquid Filler » YG4/2/2-100 Eyedrop Aseptic Filling Production Line
The prooduction line of the eye drops is mainly to the completion of the eye drops bottle Unscrambler,bottle conveying, air wash, metering packaging, plus stuffed inside and outside screw etc processed.
Main technical parameter
|
Bottle used |
5-30ml plastic bottle |
|
Production capacity |
90-120bpm |
|
Filling nozzles |
4 |
|
Bottle air washing heads |
12 |
|
Plug placing heads |
2 |
|
Capping heads |
2 |
|
Filling precision |
≤±1% |
|
Qualified bottle air washing |
100% |
|
Qualified plug placing |
≥99.8% |
|
Qualified cap screwing |
≥99.8% |
|
Compressed air required |
10m3/h 0.6-0.8MPa |
|
Total power |
≤5KW 380V(220V) 50HZ |
|
Net weight |
3000KG |
|
Overall dimension |
6780*2380*2000(Exclude LAF) |
Welcome to our website! Please send your words at any time in the following form and ask us, we will contact you and provide you with the corresponding service as soon as possible. Please write in English.
This production line is mainly used in pharmaceutical, healthcare products such as oral liquid, syrup, liquor, healthcare product, tincture in different viscosity packing.
Learn More
AY Automatic Oil Filling machine is applied for edible oil filling in field of foodstuff as well as similar liquid filling.
Learn More

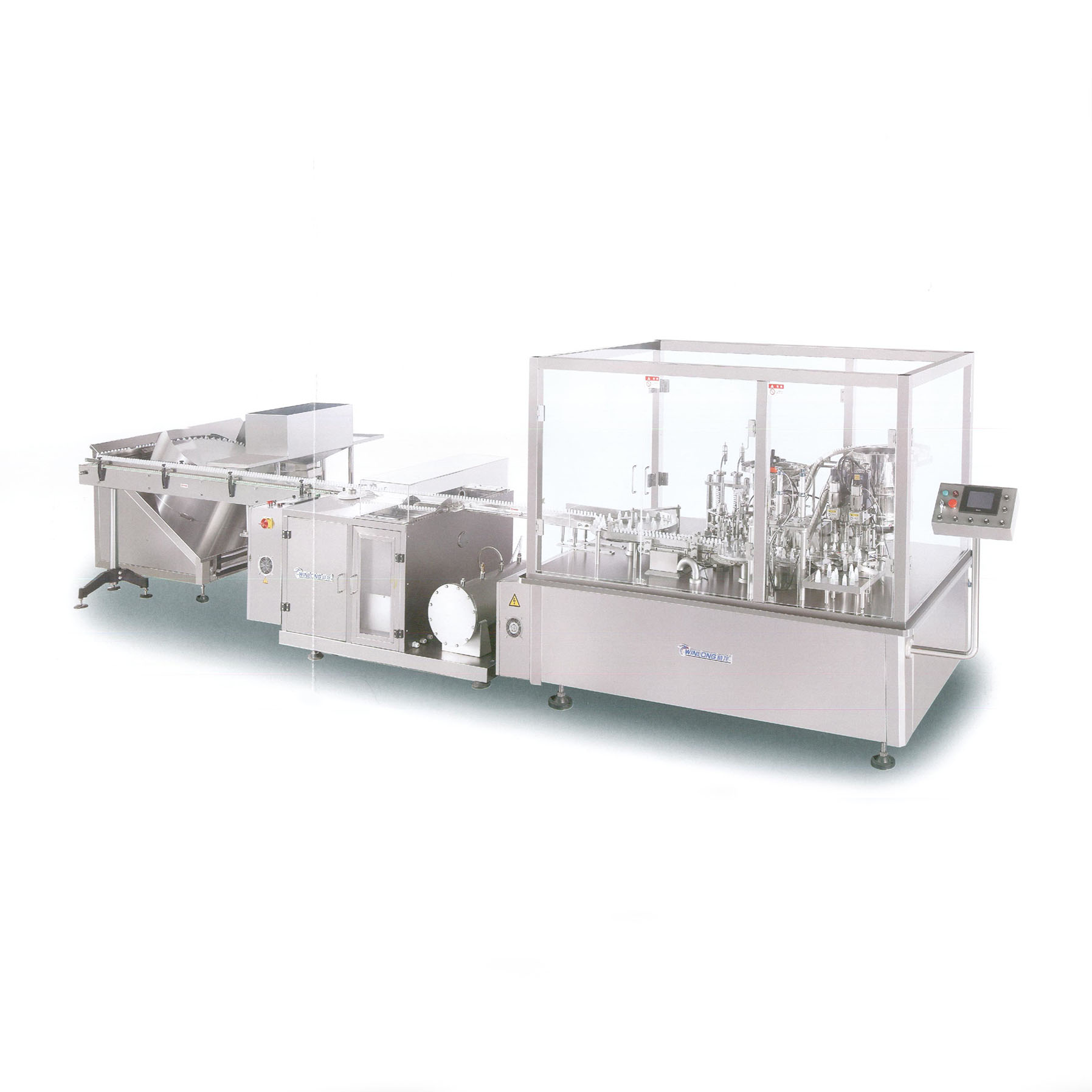

The eysdrop aseptic filling line consist of four main units including unscrambler, conveyor, pure air washer, monobloc of filling plugging and capping unit. Themachine is mainly used to accomplish bottle unscrambling, conveying, air washing, dosage discharging, plug & capplacing, The entire production process is protected under laminar flow H14 and aseptic isolation cover, which isolated all working area and keep eyedrops product be filled under aseptic environment. The regional isolation protection to ensure that the eye drops sterile production. The whole machine meet the requirements of new GMP. The production line is also suitable for the production of other similar plastic bottle.
