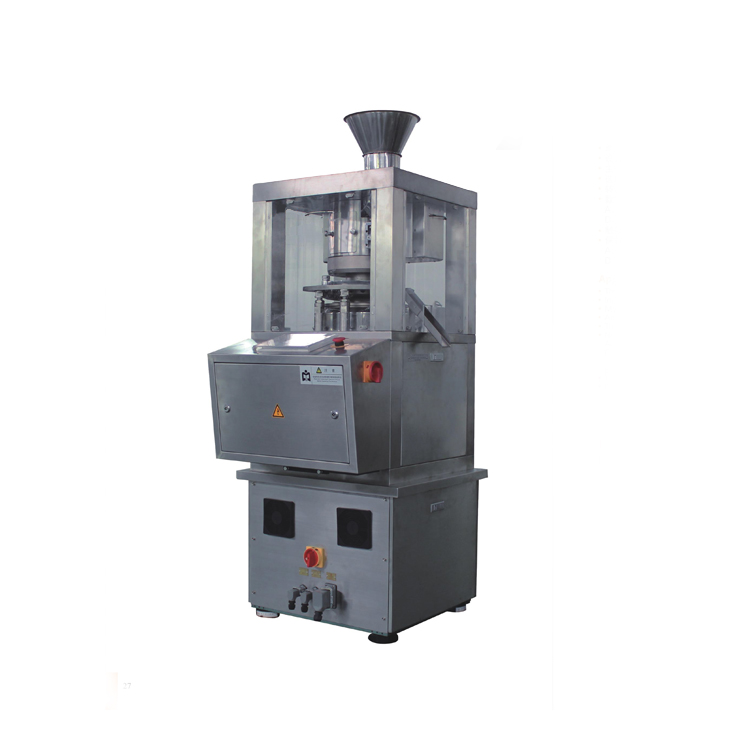

Home » Products » Tablet Press Machine » ZPY226PLC Series Rotary Tablet Press
Applications:
The machine is a single-press type. The outside part of the machine is fully enclosed. It is up to GMP.
Install pre-pressure, main-pressure.
Main shaft drive, the speed is adjusted by Frequency Conversion.
Advanced turbine retard.
There are thrust shaft, lubricate shaft on turret.
Numerical Show
A . Show present main pressure (Max. pressure 60 KN)
B . Show present tablet thickness
C . Show present f1ll1ng
D . Show present pre-pressure roller seat
E . Show present pressure of exit tablets (Max.10 KN)
F . Show present speed of turret
Touching type operation push button.
Protecting and 「eport1ng function
A . Protecting and reporting for motor breakdown
B . Protecting and reporting for exceed pressure
C . Protecting and reporting for loading and unloading lower punches
D . Emergency stopping function
技術參數 Technical parameters
|
參數 |
Data |
ZP24 |
ZP16 |
ZP10 |
ZP8 |
|
沖模數 |
Dies (sets) |
24 |
16 |
10 |
8 |
|
最大主壓片力 |
Max.Major Pressure (kn) |
60 |
|||
|
最大預壓片力 |
Max-pre-pressure(kn) |
10 |
|||
|
最大壓片直徑 |
Max Dia.of Tablet (mm) |
11 |
13 |
18 |
25 |
|
最大壓片厚度 |
Max. Thickness of Tablet (mm) |
8 |
|||
|
最大填充深度 |
Max. Depth of Filling (mm) |
16 |
|||
|
轉臺轉速 |
Turret Speed (r/min) |
40 |
|||
|
生產能力 |
Production Capacity (pc/h) |
11000-41400 |
8100-30600 |
3800-8400 |
|
|
中模直徑 |
Diameter of Die (mm) |
22 |
30.16 |
38.1 |
|
|
中模高度 |
Hight of Die (mm) |
22.22 |
23.8 |
||
|
沖桿直徑 |
Dia. Of Punch (mm) |
19 |
25.35 |
||
|
沖桿長度 |
Length of Punch (mm) |
133.35 |
|||
|
上沖進模深度 |
Upper punch into die depth range(mm) |
2-6 |
|||
|
主電機功率 |
Motor Power (kw) |
2.2 |
|||
|
外形尺寸 |
Overall Size (mm) |
540x520x1600 |
|||
|
重 量 |
Weight (kg) |
850 |
|||
