 Home » Products » Liquid Filler » AGF Automatic gravity filling machine

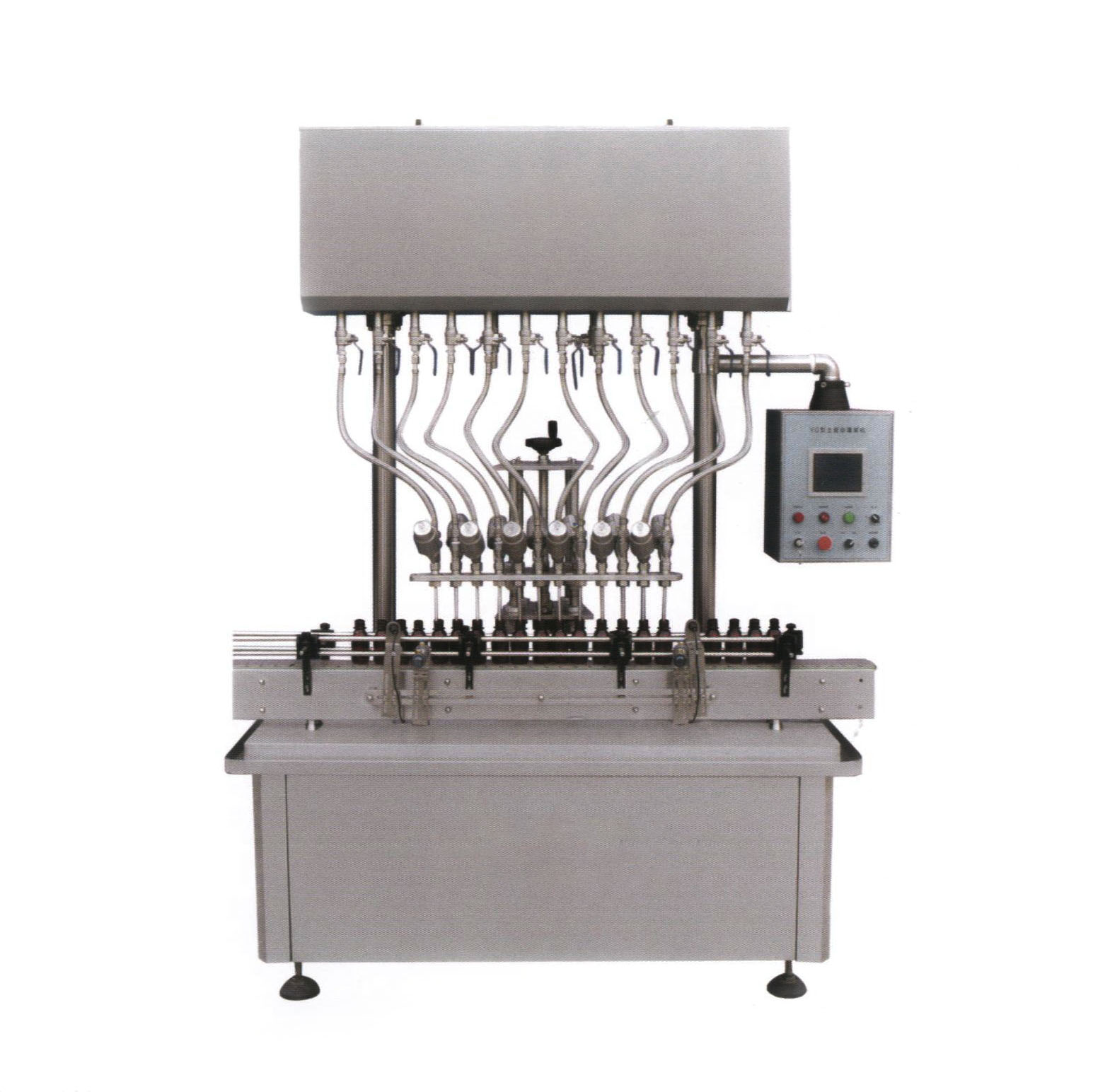

AGF Automatic gravity filling machine

AGF automatic gravity liquid filling machine adopt logic controller PLC, 6" LCD touch screen system, ordinary pressure flow passage parameters, set the flowing time to control different quantify. It applys to pharmaceutical, foodstuff, pesticide, chemical, etc.

Feature

u Man-machine English-Chinese interface, interface, intelligent contact screen, human design, easy operation

u Imported filling valve, avoiding drop leaking, accurate filling quantity

u Program logic conrroller (PLC) , easy for changing size or modifying parameters

u Pneumatic elements are all imported, stability and reliability

u Accurate liquid sensing, automatically adding liquid, ordinary pressure flow passage parameters

u Solely and specially-designed whole lifting device, easy governing to meet the needs of all kingd of container packing

u Pholo-electric sensing and pneumatic linking control, automatic protection for shortage of bottles

u Pneumatic cxecutive conitol valve. High efficiency and safety. Each flow pazsage can be separately governed and cleaned

u Close positioning design, easy governing, suitable for packing of all sizes of bottles

u The whole machine is designed according to requirements of GMP


Main technical parameters

Items

AGF-8

AGF-12

AGF-16

AGF-20

Filling nozzles

8

12

16

20

Ideal filling range

20-100ml/50-250ml/100-500ml/200-1000ml/500-2500ml/1000-5000ml

Filling speed(100ml)bpm

40-60bpm

60-80bpm

70-90bpm

80-100bpm

Filling precision

20-1000ml:≤±2%   1000-5000ml:≤±1%

Air pressure range

0.4 - 0.6MPa

Power supply

220V 50/60Hz

Power consumption

0.5Kw

0.5Kw

0.75Kw

0.75Kw

Single machine noise

≤50Db

Net weight

560Kg

600Kg

700Kg

800Kg

Overall dimension(mm)

1800*800*2500

2000*800*2500

2200*800*2500

2400*1200

2500
