 Home » Products » Liquid Filler » YG8/4 Eight Pumps Filling and Capping Monobloc

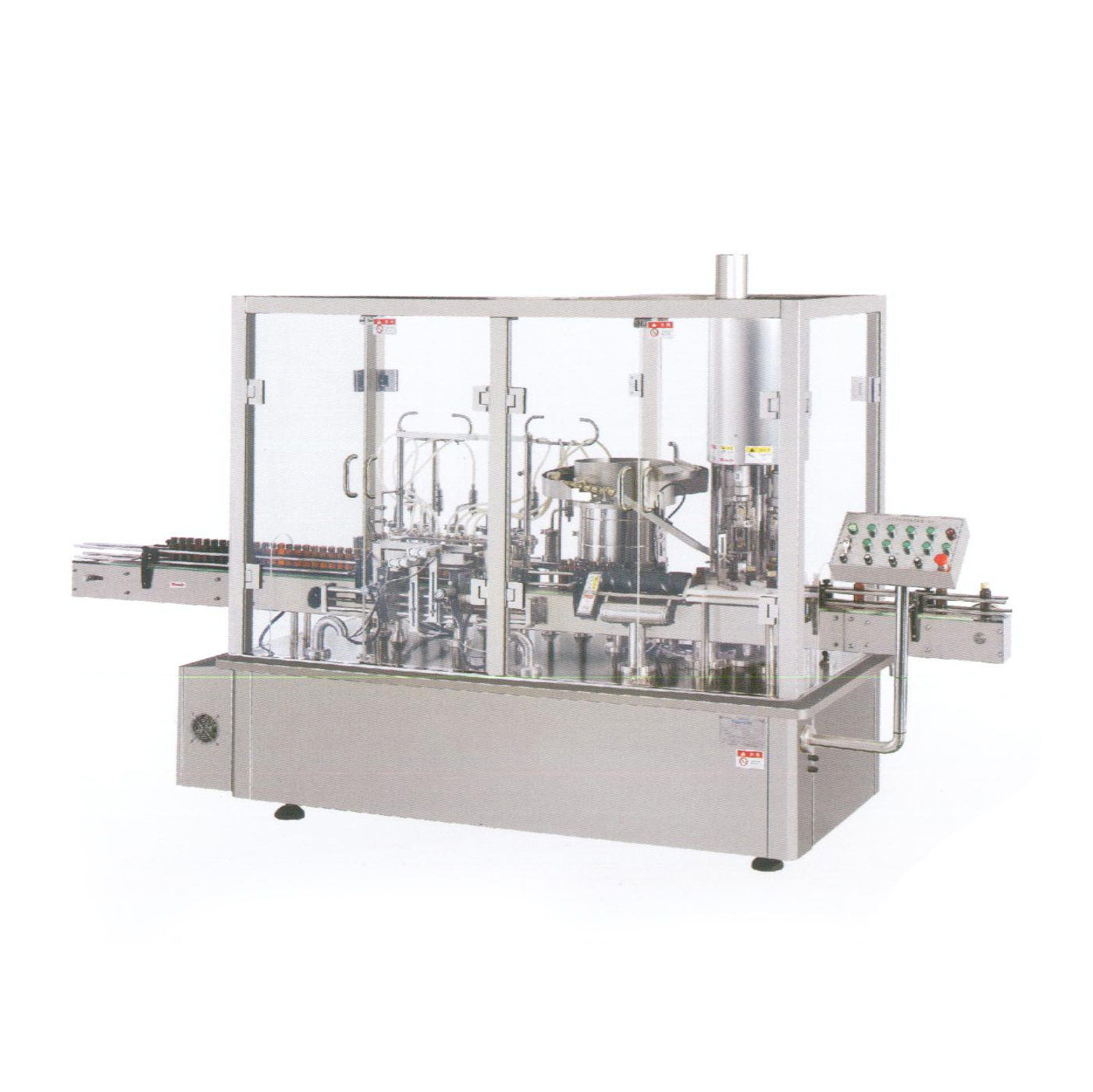

YG8/4 Eight Pumps Filling and Capping Monobloc

This production line is mainly used in pharmaceutical, healthcare products such as oral liquid, syrup, liquor, healthcare product, tincture in different viscosity packing.

Feature

u Monobloc of filling and capping in one machine, low spaceoccupied.

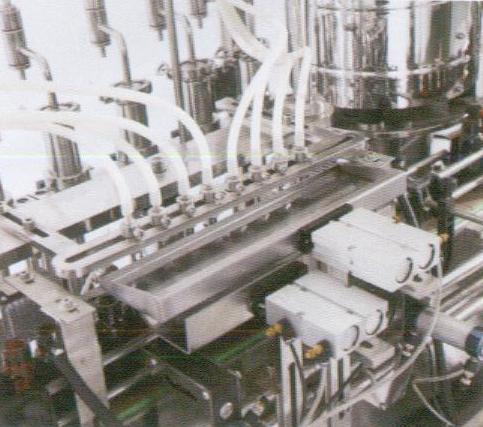

u Adopt volumetric piston pump to fill high precision, fit to light liquid and medium viscosity product, pump is easily taken down, convenient to clean and sterilize.

u The seal ring of piston pump is made of different kinds of matenrial, such as silicone, Teflon etc, optional ceramic pump in special use.

u PLC control system, frequency conversion adjustable speed.

u Filling volume of all pumps is major adjusted in one time, minor adjustment for each pump. Easy and quick operate.

Filling system has the function of shrinking, no drop leakage. Top bottom fill, mostly reduce foam.

Machine is applied to different kindsof bottles, convenient adjust, possibly finished at short time.

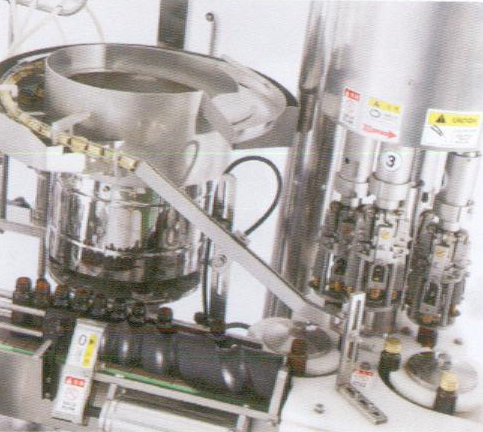

u  The capping head use twoknives screw thread, two knives sealing, and blade quenching, durable, seal and threaded are beauty and unity.

u  The whole machine meet GMP regulation.


Main Technical Parameter

Filling nozzles

8

Capping heads

4

Filling range

20-500ml

idea filling range

20-50ml;50-150ml;100-250ml;250-500ml

Alternative cap type

Pilfer-proof cap, screw cap, alum, ROPP cap

Production capacity

3600-4800B/h

Filling precision

≤±1%

Yield of capping

≥99.9%、

Power supply

220/380V  50/60Hz

Power consumption

≤2.2Kw

Air pressure range

0.4-0.6Mpa

Net weight

1500Kg

Overall dimensions(mm)

2500*1000*1600
