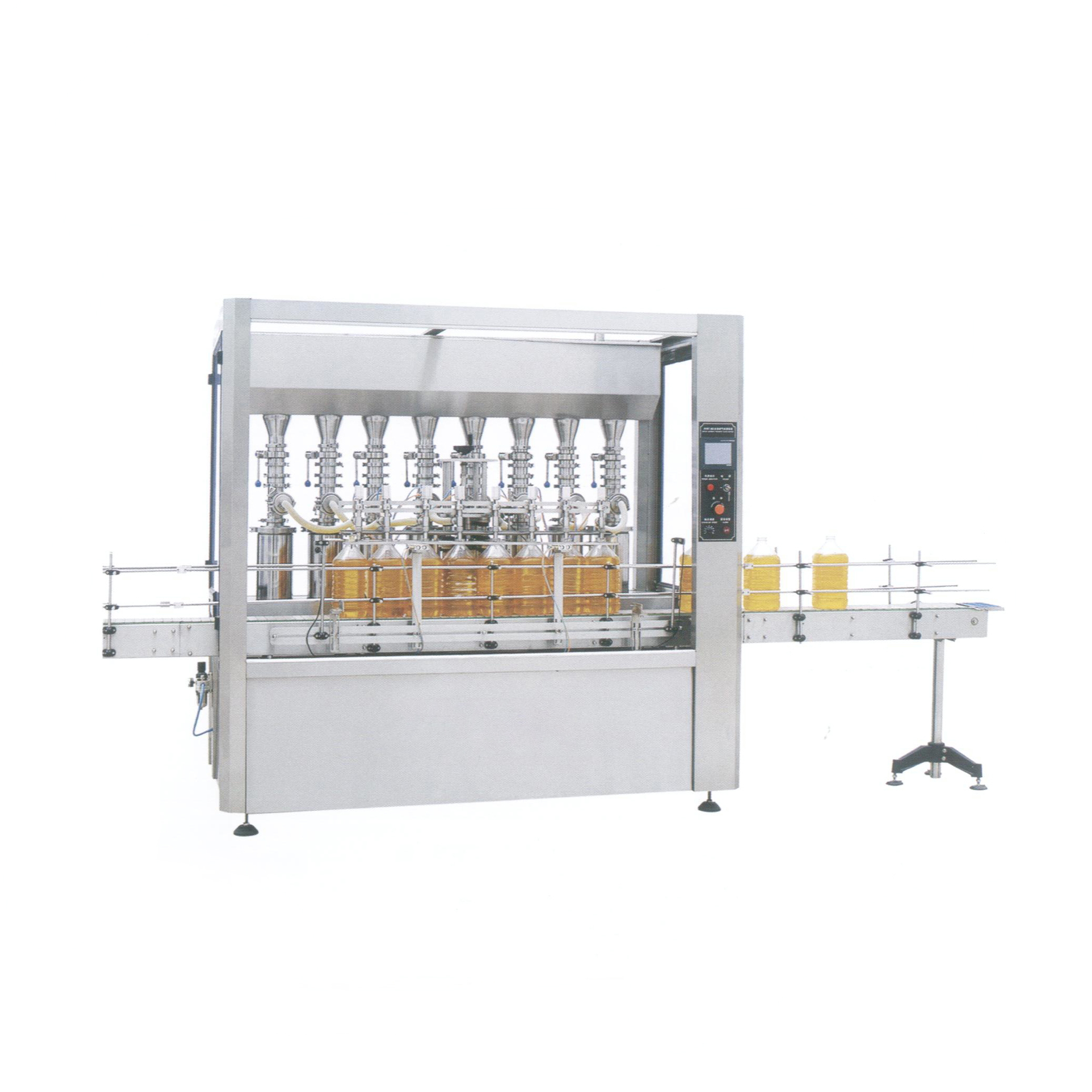

AY Automatic Oil Filling machine is applied for edible oil filling in field of foodstuff as well as similar liquid filling.
Feature
u Adopt volumetric piston pump, pneumatic control SS check valve to fill various kinds of liquid from light to medium heavy
u Pneumatic control piston pump, easy adjust filling volume
u Top liquid hopper application, with auto level sensor to control stuff supply and stop
u Auto shut on/off filling nozzle, prevent drop while filling
u Convenient to take out componet parts to clean and sterilize, adjust to fit to other bottle size with no change parts
u Frequency inverter speed control, no bottle no fill intelligence
u All electrical elements adopt Mitsubishi, Schneider brand
u Whole machine designed and manufactured accordance to GMP regulation
Main technical parameter
u Option filling volume:50-5000ml
u Filling head:4,8,12
u Filling precision:≤±1%
u Request air pressure:≤0.4-0.6MPa
u Air consumption:15m3/h
u Power:220V 50Hz
u Power output:≤1.2Kw
u Machine noise:≤50dB
u Net weight:≤1000Kg
Production capacity (e.g.5000ml )
u 4 heads:≥15bpm
u 8 heads:≥30bpm
u 12 heads:≥50bpm
